Details of API 6A HCR valve (hydraulic choke valve)

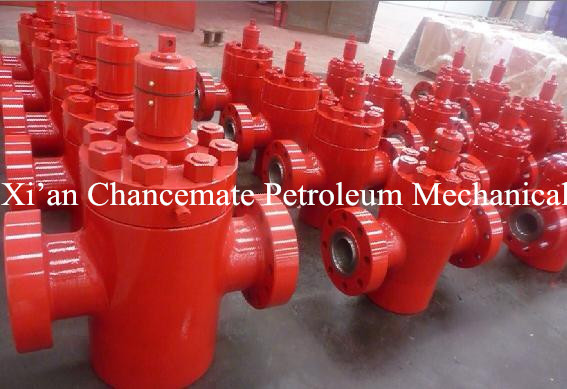

API 6A HCR valve (hydraulic choke valve)

Description of API 6A HCR valve (hydraulic choke valve)
API 6A HCR valve (hydraulic choke valve)  is mainly used for flow and pressure adjustment in HP pipelines.

 1) We provide two types of HCR valve (hydraulic choke valve): fixed choke valve and adjustable choke valve. The adjustable choke valve can be divided into needle, plunger and orifice plate type.

2) They can be manually or hydraulically operated, and conform to API 6A and 16C.

3) Flow and pressure can be adjusted through changing fluid passage section by cone surface of needle type valve bar, vertical movement of plunger or rotation of orifice plate.

4) We can provide fixed or adjustable choke valves with sizes of 2"&3" and pressures of 5000~15000psi(35~105Mpa).

Flow adjustment is indicated on a measuring scale;

Carbide alloy is embedded into cone head of valve bar and flow nipple, and plunger and orifice plate are made of special metal. Thus service life will be longer;

Indicated flow and end connecting mode (union or flange) are same as products in international market;

API 6A HCR valve (hydraulic choke valve) for manifold Below types are available:

1) Size: 1-1/16 7-1/16
2) Working Pressure: 2000 15000 Psi
3) Material Class: AA, BB, CC, DD, EE, FF
4) Product Specifications: PSL1 3
5) Temperature Class: P-U
6) Product Requirement: PR1

Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
