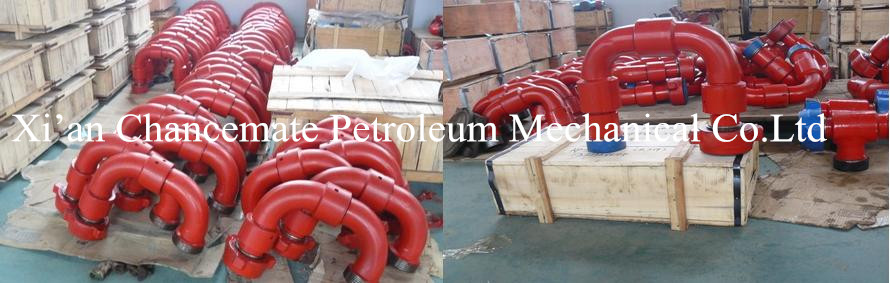

Style 50 swivel joint

Style 50 swivel joint is a metal pipe with ball joint, its specifications are 1 "~4", the rated working pressure 14~140MPa ( 2000psi~20000psi ), can be used to provide normal temperature, low temperature and sulfur gases under the conditions of the various types of active elbow and repair kits.

Long radius activities elbows have flowing path, can reduce the liquid through the resistance to a minimum, the fluid on the corner of wall thickness of erosion corrosion resistance than the short radius is good


Style 50 swivel joint

1.Style 50 swivel joint movable elbow blank bending is in NC machine tools shape, uniform wall thickness and long service life. Internal and external circular arc wall thickness difference reached the standard of FMC, the appearance of quality can be comparable with the imported blank.

2.Style 50 swivel joint The three fairway design a movable elbow, can more effectively under heavy load and radial load, the pressure steady, withstand changeable load, small vibration of pipeline.

3. Style 50 swivel joint all specifications are the same with the American FMC company production of similar products, the join size completely by American standards, can replace the same types of products FMC, cementing, fracturing equipment;

4.Style 50 swivel joint the seal using synthetic rubber with metal blowout prevention ring, and design a pressure relief hole, the seal leakage occurs automatically when the pressure relief to prevent accumulation in the fairway cavity, using complete greatly improve.

5.Style 50 swivel joint On-site repair the movable elbow usually require only occasionally lubrication can guarantee the normal work.
