AISI 4145H MOD stabilizer forging
Product Name:
AISI 4145H MOD stabilizer forging
No. :
Product Description

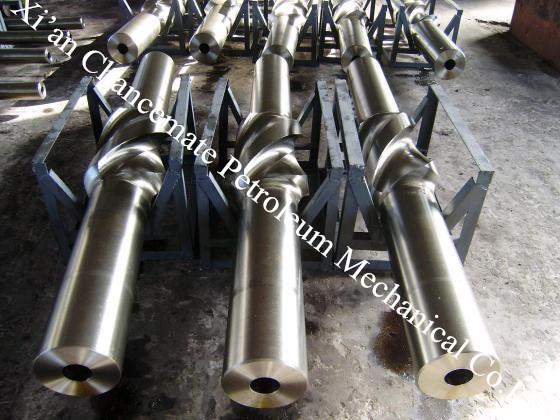

AISI 4145H MOD stabilizer forging
AISI 4145H MOD stabilizer forging
stabilizer forging are manufactured from one solid bar of AIS14145H modifed steel. Professional heat-treatment process gurantees the mechanical strengths meet the requirments of API SPEC7-1. Hardness of 285-341HB can be assured both 1” beneath the outer surface and 4 quadrant acrosss the neck OD.
AISI 4145H MOD stabilizer forging
stabilizer forging are manufactured from one solid bar of AIS14145H modifed steel. Professional heat-treatment process gurantees the mechanical strengths meet the requirments of API SPEC7-1. Hardness of 285-341HB can be assured both 1” beneath the outer surface and 4 quadrant acrosss the neck OD.
| Size | Crown OD | Neck | ID | Neck Length | Crown Length | Overall Length |
| in(mm) | in(mm) | in(mm) | in(mm) | in(mm) | in(mm) | |
| 81/2-61/2-213/16-100 | 8 1/2(215.9) | 6 1/2(165.1) | 2 13/16(71.4) | 30(762) | 18(457.2) | 100(2540) |
| 121/4-81/4-213/16-100 | 12 1/4(311.2) | 8 1/4(209.6) | 2 13/16(71.4) | 30(762) | 18(457.2) | 100(2540) |
| 121/4-91/2-213/16-100 | 12 1/4(311.2) | 9 1/2(241.3) | 2 13/16(71.4) | 30(762) | 18(457.2) | 100(2540) |
| 143/4-81/4-3-100 | 14 3/4(374.7) | 8 1/4(209.6) | 3(76.2) | 30(762) | 20(508) | 100(2540) |
| 143/4-91/2-3-100 | 14 3/4(374.7) | 9 1/2(241.3) | 3(76.2) | 30(762) | 20(508) | 100(2540) |
| 163/8-91/2-3-100 | 16 3/8(415.9) | 9 1/2(241.3) | 3(76.2) | 30(762) | 20(508) | 100(2540) |
| 171/2-81/4-3-100 | 17 1/2(444.5) | 8 1/4(209.6) | 3(76.2) | 30(762) | 20(508) | 100(2540) |
| 171/2-91/2-3-100 | 17 1/2(444.5) | 9 1/2(241.3) | 3(76.2) | 30(762) | 20(508) | 100(2540) |
| 22-91/2-3-100 | 22(558.8) | 9 1/2(241.3) | 3(76.2) | 30(762) | 24(609.6) | 100(2540) |
| 26-91/2-3-116 | 26(660.4) | 9 1/2(241.3) | 3(76.2) | 30(762) | 24(609.6) | 116(2946) |
| 28-91/2-3-122 | 28(711.2) | 9 1/2(241.3) | 3(76.2) | 30(762) | 24(609.6) | 122(3098 |
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for yo
