API 6A plug valve (wellhead cock valve)
Product Name:
API 6A plug valve (wellhead cock valve)
No. :
:
:

Product Description

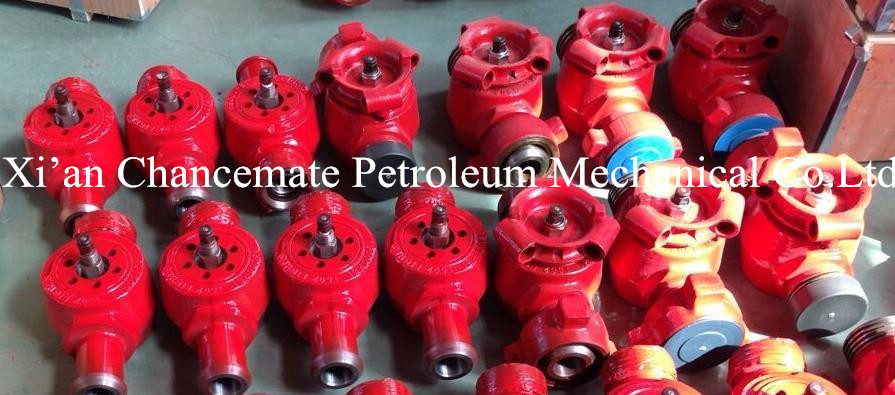

Product pictures of API 6A plug valve (wellhead cock valve)

API 6A plug valve (wellhead cock valve)

Plug valve

The  plug valve is a necessary part that is utilized on the high pressure manifold for the cementing and fracturing operations in oil field and also suitable to control over the similar high pressure fluid. Featuring the compact structure, easy maintenance, small torque, rapid opening and easy operation, the plug valve is ideal for the cementing and fracturing manifolds.
Working Principles and Features
The plug valve consists of the valve body, plug cap, plug and etc.
The plug valve is available with the union 1502 inlet and outlet preparations (also available upon customer request). The cylinder body inner wall and side segments work together with the rubber seal segments to provide sealing.
The metal-to-metal sealing is available between the side segments and cylinder plug, featuring high precision and reliability.
Note: the valve can be easily opened or closed even under the 10000psi high pressure.

Detailed size of API 6A plug valve (wellhead cock valve)

Description

Rated

WPEnd connection

1” plug valve

6000psi

2”male (LP)

1” plug valve

10000psi

2”male (LP)

1” plug valve

15000psi

2”male (LP)

1” plug valve

15000psi

2”union (F*M)

2” plug valve

6000psi

2” female (LP)

2” plug valve

6000psi

2”union (F*M)

2” plug valve

10000psi

2” female (LP)

2” plug valve

15000psi

2”union (F*M)

3” plug valve

6000psi

3”female (LP)

3” plug valve

10000psi

3”female (LP)

3” plug valve

15000psi

3”union (F*M)


Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
